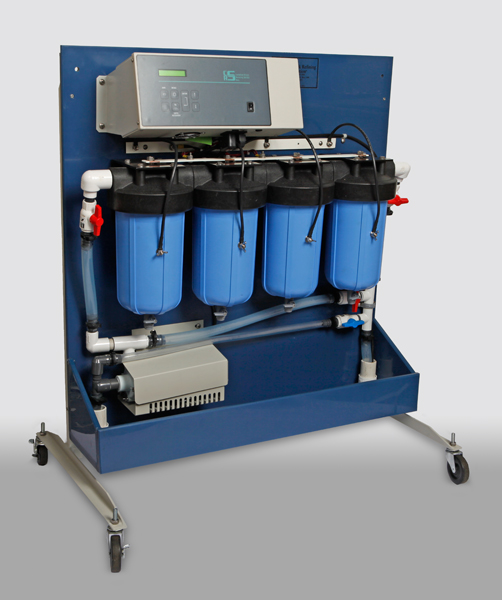

J-4 Electrolytic

Closed loop electrolytic system that recovers up to 98% available silver, reduces replenishment and reduces silver concentrations in wash water. Used as a PRIMARY silver recovery system for Industrial X-Ray (NDT), Pre-Press Shops, Microfilm and X-Ray Processing.

Key Benefits

  • Smart microprocessor with self test and diagnostics
  • "Turbo Plate" software with jumbo cell and anode
  • Automatic "Low Silver Calibration" mode
  • Overload protection with alarm
  • Ampere and operating hour clock with adjustable LCD
  • Harvest alarm with snooze feature
  • Automatic 24 hour operation
  • Accessible bypass valves and drain valves for service
  • Wall mount or floor stand installation
  • Dedicated circulation pump with protective cover
  • Cross-flow circulation booster increases plating efficiency and reduces agitation in processor fix tank
  • Unitized mounting board with secondary containment spill tray
  • Multiple safety certifications - UL/TUV/CE
  • Meets FCC emissions requirements


  • Industrial X-Ray (NDT)
  • Pre-Press Shops
  • Microfilm
  • X-Ray Processing

Materials of Construction

  • Compatible with C-41, E-6, X-Ray and Microfilm

Add Ons

  • Optional security lock - must be factory installed
  • Floor stand with wheels (21"W x 40"H x 22"D)


Plating Surface: 1574 cm 2 Maximum Silver Plate: 41 gallons/hour
Film Process Capacity 80%: 400 m2/8 hours Dimensions: 35" W x 36" H x 9" D
Film Process Capacity 50%: 160 m2/8 hours Shipping Weight: 126 pounds
Film Process Capacity 20%: 100 m2/8 hours Power Requirements: 115/230 VAC, 50/60 Hz, 10 amp
Average Sustained Ag in Tank: .2 - .5 g/L Average Service Cycle: 60 - 90 days
